One‑click generation of balloon callouts and structured inspection checklists by selecting annotation objects.
Operation Steps:
- Launch the tool via Tools > Extract Dim, or type command
Extractdimin the command line. - Drag to select the area with target dimensions to export, then right-click to extract.
- Review the exported data table and click OK to proceed.
- Input the balloon text height in the command line and press Enter. (Tip: Reference the dimension text size to set balloon height)

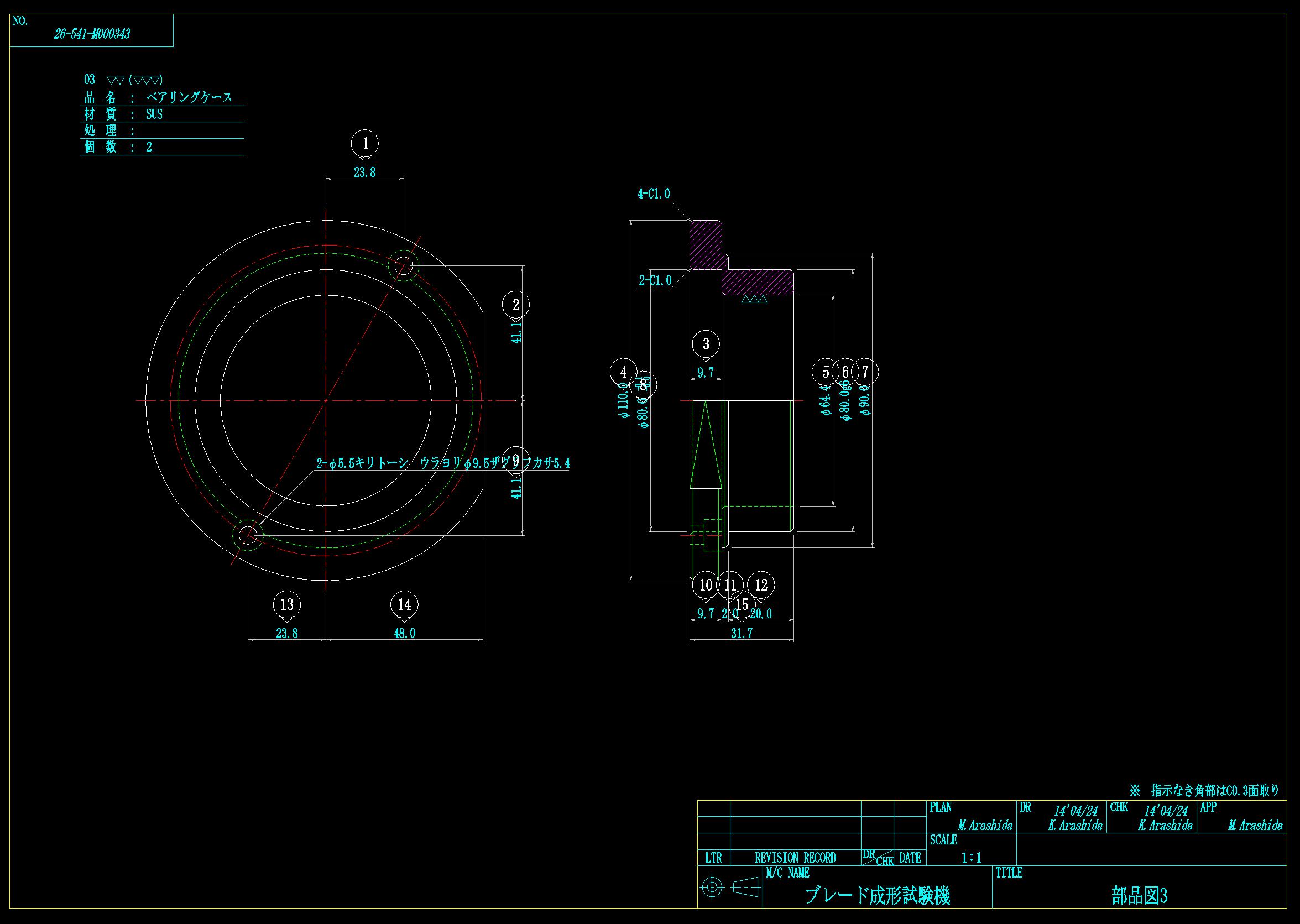

- The system automatically generates bubble dimension annotations.
- Navigate to layout Inspection 0 to view the generated inspection table.

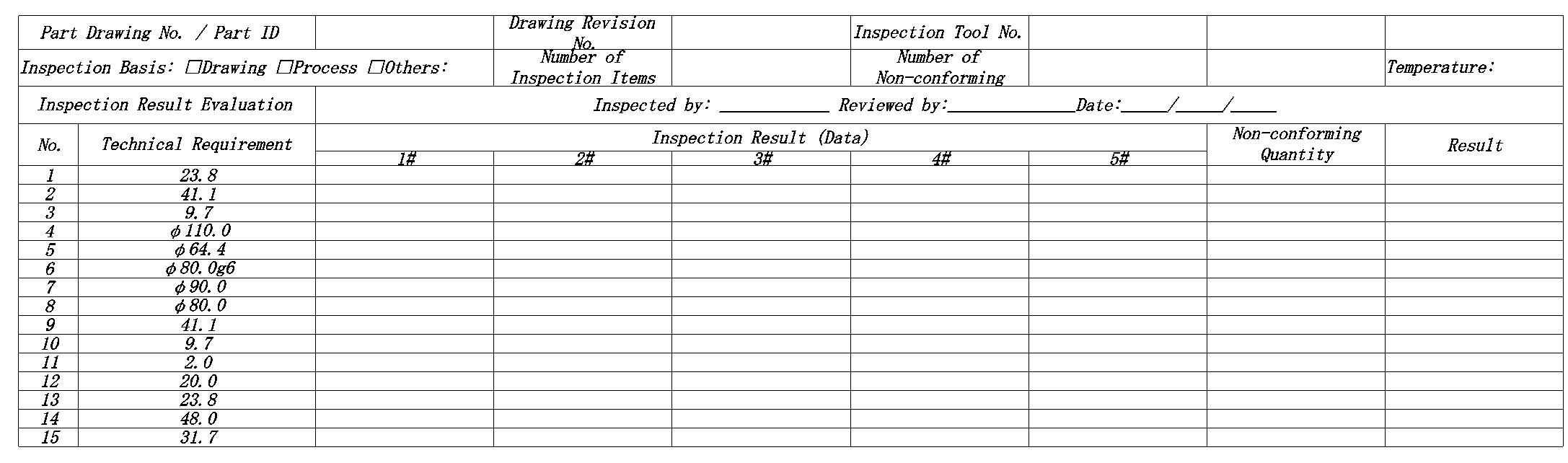

Inspection Table
A default-version inspection table will be automatically created in the new Layout Inspection for dimension checking and reference.
Automatically output according to the template, corresponding one-to-one with the feature list, eliminating the need for manual organization
Features #
Rapid Annotation Recognition for Inspection Reports #
Recognition, review and export can be completed within 30 seconds.
- Select‑and‑Recognize
- Customizable Balloon Size
- Auto‑sequenced Balloon Numbering
- One‑click Full‑Dimension Inspection Report Export
- Linked Bi‑directional Data Update
- Vector‑based PDF Export
Customization & System Integration #
Extend standalone software into your enterprise quality‑digital workflow. Agile iterative updates aligned with your business requirements.
- Custom Dimension‑Extraction Rules
- Custom Inspection‑Plan Templates
- Custom Deviation‑Detection Logic
